Nvidia will release its next high-end graphics card at CES in Las Vegas on January 8th and the company has given us the opportunity to give bit-tech’s readers a sneak peek at how the GeForce GTX 295 will perform. However, because the card is not available on the market yet, and won’t be until January 8th at the earliest, the company has asked us to adhere to a number of restrictions..
The GeForce GTX 295 is a return to dual GPUs on a single card for Nvidia, which some may or may not appreciate. Nvidia still has the fastest single GPU card in the world with the GeForce GTX 280 but because there is such a gulf between Nvidia’s current flagship product and the ATI Radeon HD 4870 X2, it was time for the company to respond with something that’s able to compete for the graphics crown.

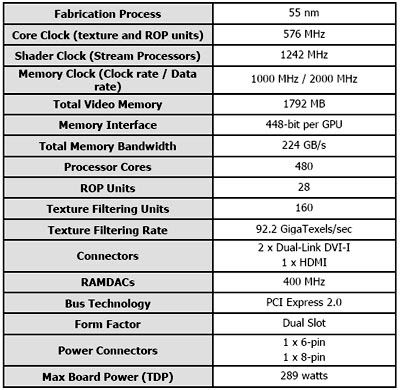

Specifications
Spec VS GTX 2xx480 Stream processors
576 MHz core clock
1242 MHz shader clock
1000 / 2000 MHz GDDR3 memory clock
1792MB total frame buffer (896MB per core)
4480-bit memory interface per core
56 total ROPs (28 per core)
160 texture units (80 per core)
Test :
Crysis Warhead :
FarCry 2
The GeForce GTX 295 will feature the new die-shrunk 55nm version of the GeForce GT200 GPU, and will have the following specifications: 480 stream processors (240x2), a 896 bit memory interface (448x2), and 1792MB of GDDR3. Judging from these specs, there is no reason why this card won't be the single fastest card you can pick up, at least until ATI answers back. Fudzilla has tested the Geforce GTX 295 and it beats the 4870 X2 in almost every game. Nvidia claims that the 4870 X2 only won in certain games because Nvidia has not launched their new drivers for the card. With the new drivers, the GeForce GTX 295 is expected to beat the ATI 4870 X2 in every game.
The GeForce GTX 295 will be officially launched at the Consumer Electronics Show (CES) on 8 January 2009, and Nvidia estimates that it will cost around $499 US (£322.41), although no official UK pricing has been announced yet.
GeForce GTX 295 | GeForce GTX 280 | GeForce GTX 260 | GeForce 9800 GX2 | Radeon HD 4870 X2 | |
---|---|---|---|---|---|
Manufacturing Process | 55nm TSMC | 65nm TSMC | 65nm TSMC | 65nm TSMC | 55nm TSMC |
SPs | 480 | 240 | 216 | 256 | 1,600 |
Core Clock | 576 MHz | 602 MHz | 576 MHz | 600 MHz | 750 MHz |
Shader Clock | 1,242 MHz | 1,296 MHz | 1,242 MHz | 1,500 MHz | 750 MHz |
Memory Clock | 1,998 MHz Eff. | 2,214 MHz Eff. | 1,998 MHz Eff. | 2,000 MHz Eff. | 3,600 MHz Eff. |
Frame Buffer | 1,792 MB Tot. | 1 GB | 896 MB | 1 GB Tot. | 2 GB Tot. |
Memory Bus Width | 448-bit x 2 | 512-bit | 448-bit | 256-bit x 2 | 256-bit x 2 |
ROPs | 56 Tot. | 32 | 28 | 32 Tot. | 32 Tot. |
Price | $499 MSP | ~$380 | ~$230 | N/A | ~$500 |
